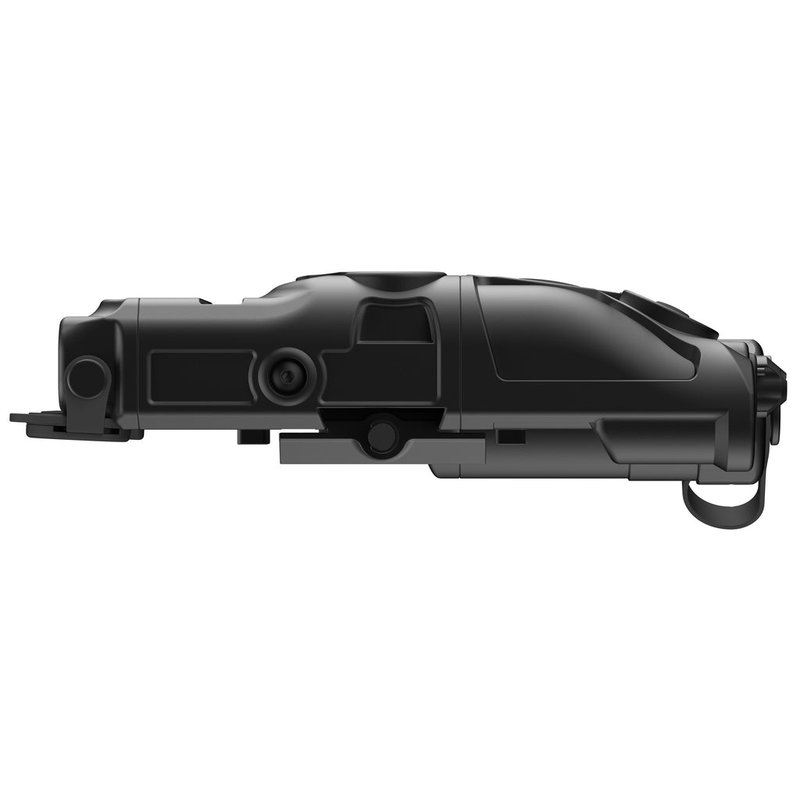

Steiner ATLAS Advanced Tactical Laser Aiming System Green IR Ambidextrous Magnesium Housing 9061 BLK

Steiner ATLAS Advanced Tactical Laser Aiming System is a rugged, mission-ready weapon-mounted laser and illumination unit engineered for precision and usability. Built with a lightweight magnesium alloy housing and low-profile integrated bolt mount, ATLAS fits MIL-STD-1913 Picatinny rails while preserving a low height over bore. It delivers co-aligned visible green and near-infrared (NIR) laser pointers and multiple NIR illuminators—including a long-range VCSEL—for rapid target acquisition across close, medium, and long distances. Controls are ambidextrous with a centered 5-position mode switch and three tactile buttons designed for gloved operation. Powered by a CR123A lithium battery, ATLAS provides over three hours of continuous runtime in demanding conditions. Dimensions measure 4.5 x 2.5 x 1.4 inches and the unit weighs approximately 7 ounces.

Product Highlights:

• Co-aligned visible green and NIR laser pointers with long-range VCSEL illuminator for precise aiming
• Multiple NIR LED illuminators: wide 40–50°, medium 10–15°, and narrow 2–3° beams
• Ergonomics with ambidextrous, centered controls and gloved-hand operability
• Magnesium alloy housing and low-profile integrated bolt mount for secure weapon fit
• Runs on one CR123A battery; compatible with MIL-STD-1913 Picatinny rails

Specs:

• Product Type: Weapon-mounted laser aiming and illumination system
• Laser/Illuminator Configuration: Visible green pointer, NIR pointer, short-range wide FOV NIR LED, mid-range NIR LED, long-range VCSEL
• Pointer Beam Divergence: ≤0.8 mrad
• NIR Illuminator Beam Divergence: Wide 40–50°; Medium 10–15°; Long-range 2–3°
• Housing Material: Magnesium alloy
• Mounting Interface: MIL-STD-1913 (Picatinny)
• Controls: 5-position mode switch; 3 tactile buttons
• Power Supply: CR123A lithium battery
• Battery Life: Approximately 3 hours
• Dimensions: 4.5 x 2.5 x 1.4 inches
• Weight: ~7 oz
• Color: Black
• Country of Manufacture: United States of America
• UPC: 000381906106
• Manufacturer Part Number: 9061-BLK
• Brand Name: Steiner
