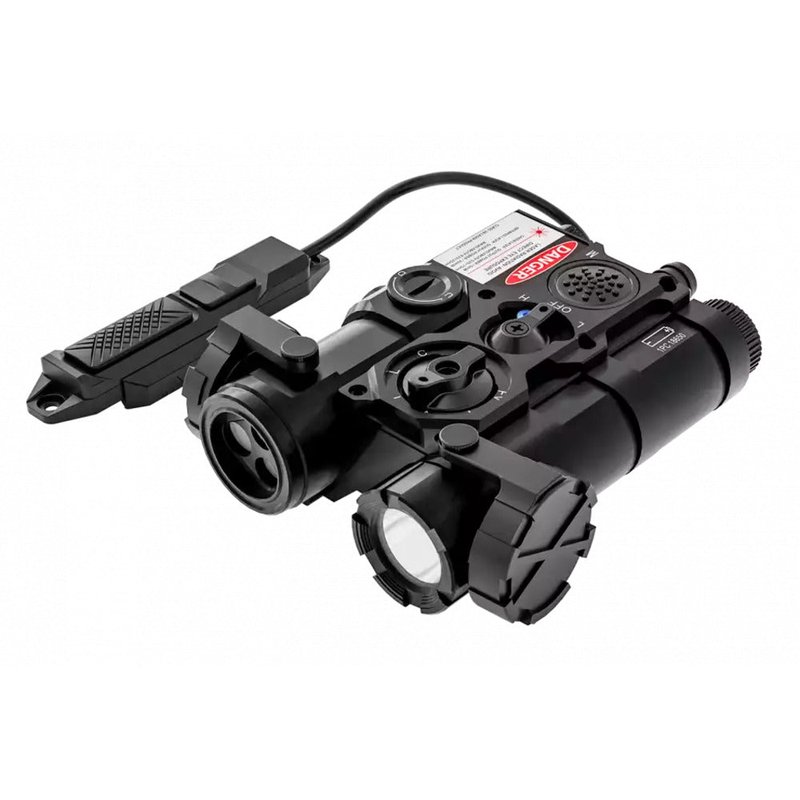

AGM WLAD 1B Multi-Spectral Weapon Laser Aiming Device Class 1 (Black)

Overview

The WLAD Weapon Laser Aiming Device is a Class 1 multi-spectral laser system consisting of a green visible aiming laser, a near-infrared (near-IR) aiming laser, an IR illuminator, and a 300 lm LED illuminator.

The system provides collimated aiming lasers for precision aiming and targeting in low-light conditions and in conjunction with night vision devices.

Features

• Rapid active target acquisition
• True night vision compatible mode
• Six function modes
• User selectable constant wave or pulsed flashlight modes
• 300 Lumen LED flashlight
• Tactical remote switch
• Co-boresighted aiming lasers
• Mounting: Weaver or Rail Picatinny (MIL-STD-1913) Type
• Low base design
• IPX8 / IP68 waterproof (per specs)
• 2-Year Warranty

Included

• Aiming/Illumination Module
• Remote Switch
• Operation Manual
• Soft Carrying Case
• Clean Brush
• Clean Cloth

Key Specifications

• Class: IR LASER, GREEN LASER, IR ILLUMINATOR – Class 1
• Output power: IR < 0.2 mW; Green < 1 mW; IR illuminator < 1 mW
• Wavelength: IR 830±15 nm; Green 520±10 nm; IR illuminator 830±15 nm
• Operating distance: IR > 400 m; Green > 25 m (in direct sunlight); IR illuminator > 100 m
• Divergence: IR 0.5+0.3 mrad; Green 0.5+0.3 mrad; IR illuminator 1–100 mrad
• Shockproof: 1,200 G
• Weight: 298 g (10.5 oz)
• Dimensions: 113 × 77 × 42 mm (4.3 × 3.0 × 1.5 in)
• Color (housing): Black (WLAD-1B)
