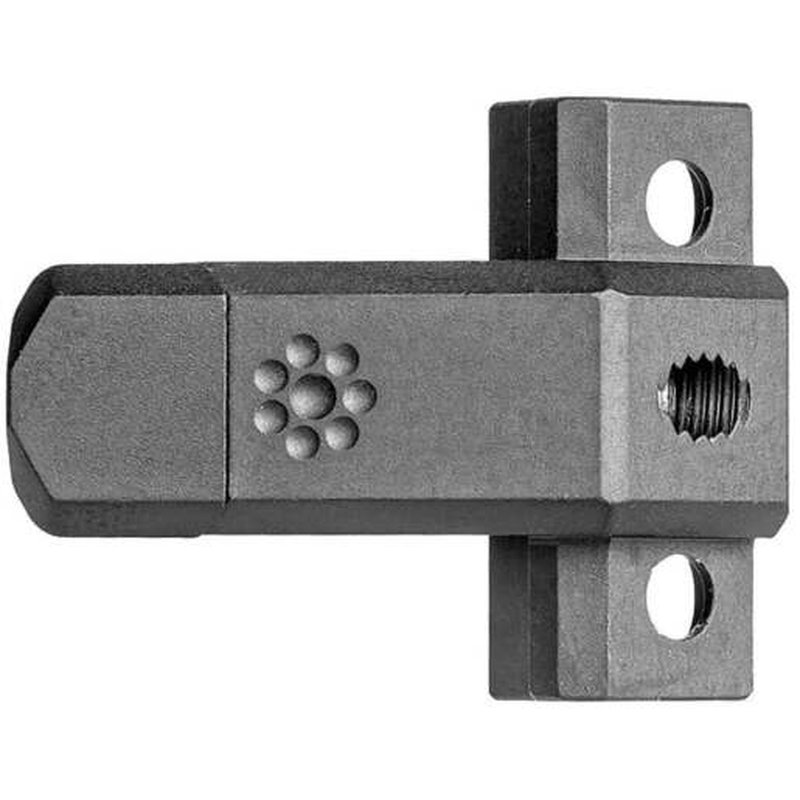

Modlite Arisaka Offset Scout Mount Picatinny QD Light Mount (OSM-PIC) - Black

Overview

The Arisaka Offset Scout Mount is designed for lights that use the Scout-style mounting platform. It replaces a stock Picatinny rail adapter with a low-profile mount that tucks the light closer to the handguard.

When mounted on the side surfaces of Picatinny handguards, the mount positions the light at a 45° angle:

• Oriented upwards: approximately 1:30 or 10:30 clock positions
• Oriented downwards: approximately 4:30 or 6:30 clock positions

Compatibility

Compatible with the following Scout-style light bodies/lights:

• Modlite 18350 and 18650 bodies/lights
• SureFire: M300A, M300B, M300C, M300V, M312, M322, M312V, M313V, M322V, M600B, M600C, M600P, M600U, M600V, M600DF, M612, M622, M603V, M612V, M622V
• Streamlight Protac Rail Mount 1, 2 and HL-X
• Arisaka 300 and 600 Series

Construction & Installation

• CNC machined from 6061-T6 aluminum
• MIL-A-8625 Type III hard coat anodized
• Includes necessary screws to attach the light body to the mount
• Requires an IP27/T27 and IP20/T20 Torx driver (not included)
• Recommended torque: 30 in-lbs for clamping screw; 20 in-lbs for light body screws (use Loctite 222 or 243)
• Made in the USA
