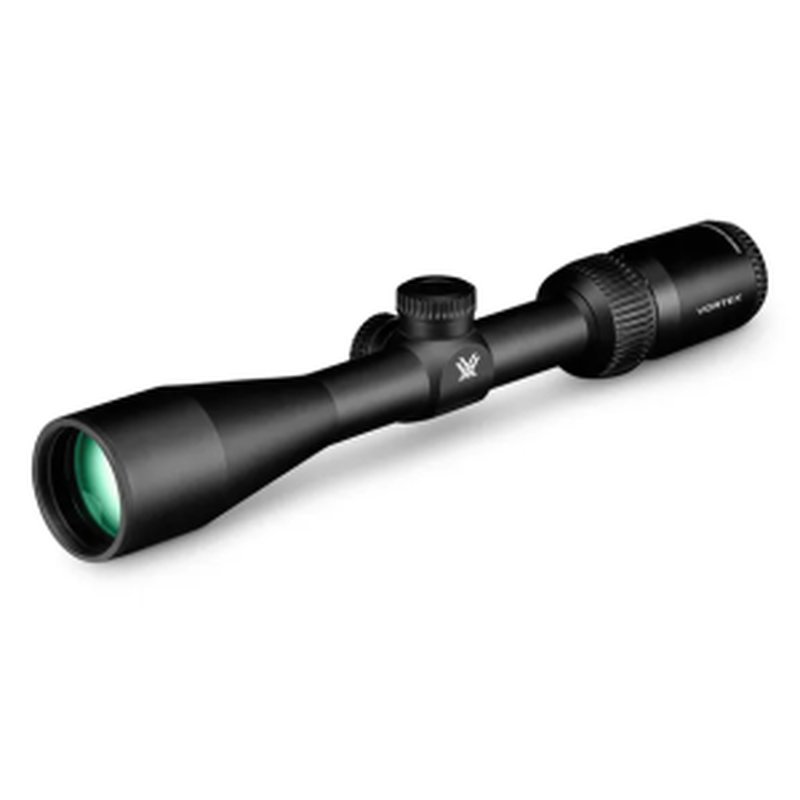

Vortex Crossfire HD 3-9x40 Riflescope Straight-Wall BDC MOA
User Ratings
No ratings yet
Be the first to review this product
Vortex Crossfire HD 3-9x40 Riflescope with Straight-Wall BDC MOA reticle. Built from aircraft-grade aluminum with a low-glare matte black anodized finish. Features a 1" tube, second focal plane reticle, 3-9x magnification, 40mm objective, and 72 MOA of total elevation/windage. Waterproof, fogproof, and shockproof with a 3.8" eye relief. Includes neoprene cover, 3-inch sunshade, turret tool, and lens cloth.
Specifications:
- Magnification: 3-9x
- Objective Lens Diameter: 40mm
- Focal Plane: Second
- Reticle: Straight-Wall BDC (MOA)
- Eye Relief: 3.8 in
- Field of View: 37.2 ft – 12.4 ft @ 100 yd
- Turret Style: Capped
- Tube Size: 1 in
- Adjustment Graduation: 1/4 MOA
- Travel Per Rotation: 15 MOA
- Max Elevation Adjustment: 72 MOA
- Max Windage Adjustment: 72 MOA
- Parallax Setting: 100 yd
- Length: 12.5 in
- Weight: 16.2 oz
Includes: neoprene cover, 3-inch sunshade, turret tool, and lens cloth.
Specifications
- Manufacturer:
- Vortex Optics
- Category:
- lpvo-scope
- Weight:
- 16.2 oz (1.01 lbs)
- Length:
- 12.5"
- UPC:
- 843829146043
- MPN:
- CFR-3901SW
- Required Component:
- No
