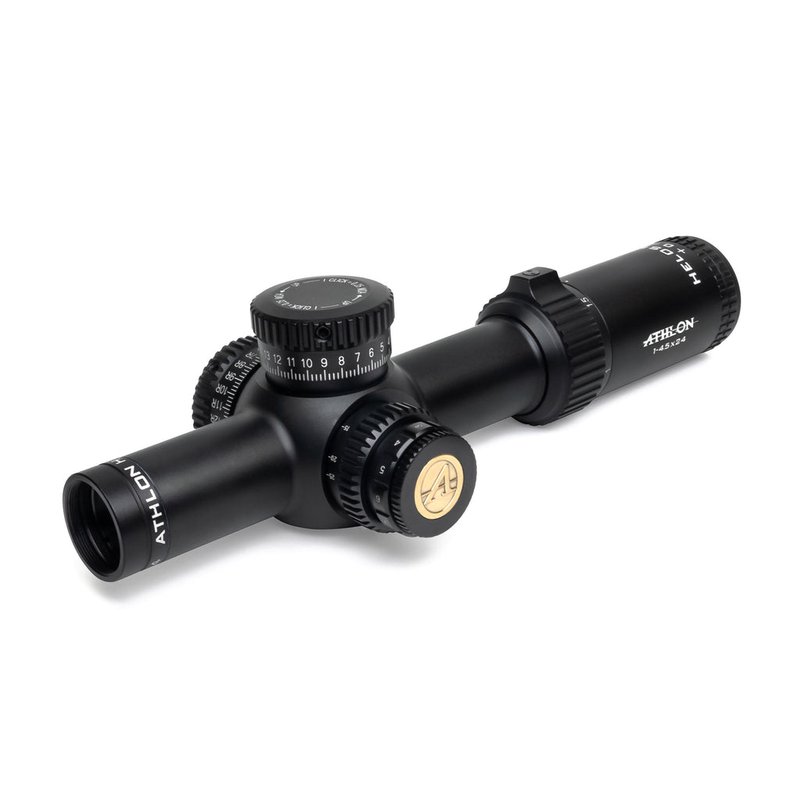

Athlon Helos BTR 1-4.5x24 Exposed Turrets Zero Stop SFP IR ATSR3 MOA

Overview

The HELOS BTR 1-4.5×24 rifle scope is designed for service rifle matches and AR platforms, covering short- to mid-range shooting. It features durable exposed turrets with 23 MOA adjustment per rotation, a true zero stop, and a revolution locking mechanism.

The revolution locking feature limits the upward elevation adjustment to one revolution from the zero position while still providing total 23 MOA adjustment (sufficient for targets up to 600 yards, per listing). The ATSR3 MOA reticle is built for service rifle matches with a center circle, center dot, and a horizontal line for wind drift compensation.

Key Features

• Advanced fully multi-coated lenses for enhanced light transmission and true color across the range
• Precision zero stop system returns to the original zero position
• Waterproof construction for heavy rain and accidental water submersion

Specs (from listing)

• Reticle: ATSR3 MOA (illuminated)
• Focal plane: SFP
• Tube size: 30mm
• Magnification: 1-4.5x
• Objective lens diameter: 24mm
• Eye relief: 3.2 in
• Minimum parallax: 10 yd
• Turret style: Exposed (elevation and windage)
• Total elevation: 80 MOA
• Total windage: 80 MOA
• Adjustment per rotation: 23 MOA
• Click value: 0.25 MOA
• Field of view @ 100 yards: 100-22 ft
