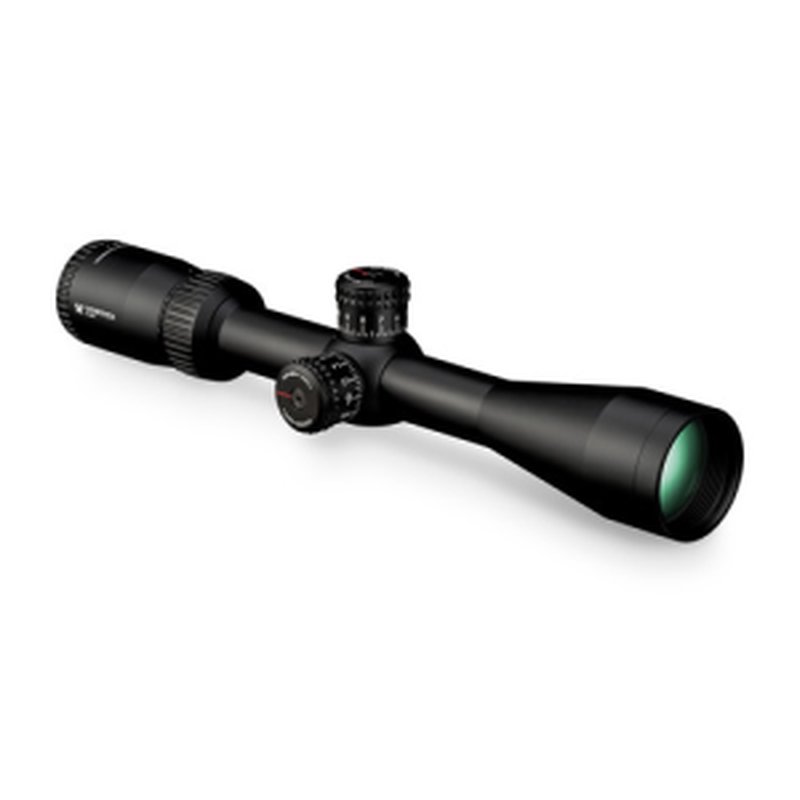

VORTEX Diamondback Tactical 3-9 x 40 VMR-1 Reticle 12.5"

Exposed tactical turrets built for dialing elevation and windage allow quick and precise bullet drop and wind drift compensation at extended ranges. When Vortex says precise they mean it. These turrets track better than any Bloodhound and reliably return to zero every time. A zero-reset feature lets you re-index the zero reference marks on both turrets after sight in, while fiber optic rotation indicators integrated into the turrets provide a visual cue of your turret's position.

Optical Features:

• XD Lens Elements – Extra-low dispersion glass increases resolution and color fidelity.
• XR Fully Multi-Coated – Coatings increase light transmission on all air-to-glass surfaces.
• Second Focal Plane Reticle – Subtensions accurate at the highest magnification.

Construction Features:

• Tube Size – 1 inch
• Aircraft-Grade Aluminum – Strength and rigidity
• Waterproof, Fogproof, Shockproof
• Hard Anodized Finish – Low-glare matte

Convenience Features:

• Fast Focus Eyepiece
• Fiber Optic Radius Bar
• Magnification Dial

Internal Mechanism Design Features:

• Precision-Glide Erector System

Specifications:

• Magnification: 3-9x
• Objective Lens Diameter: 40 mm
• Eye Relief: 3.8 inches
• Field of View: 33.7-11.3 feet/100 yards
• Tube Size: 1 inch
• Turret Style: Tactical
• Adjustment Graduation: 1/4 MOA
• Travel per Rotation: 12 MOA
• Max Elevation Adjustment: 80 MOA
• Max Windage Adjustment: 80 MOA
• Parallax Setting: 100 yards
• Length: 12.5 inches
• Weight: 15.9 ounces
