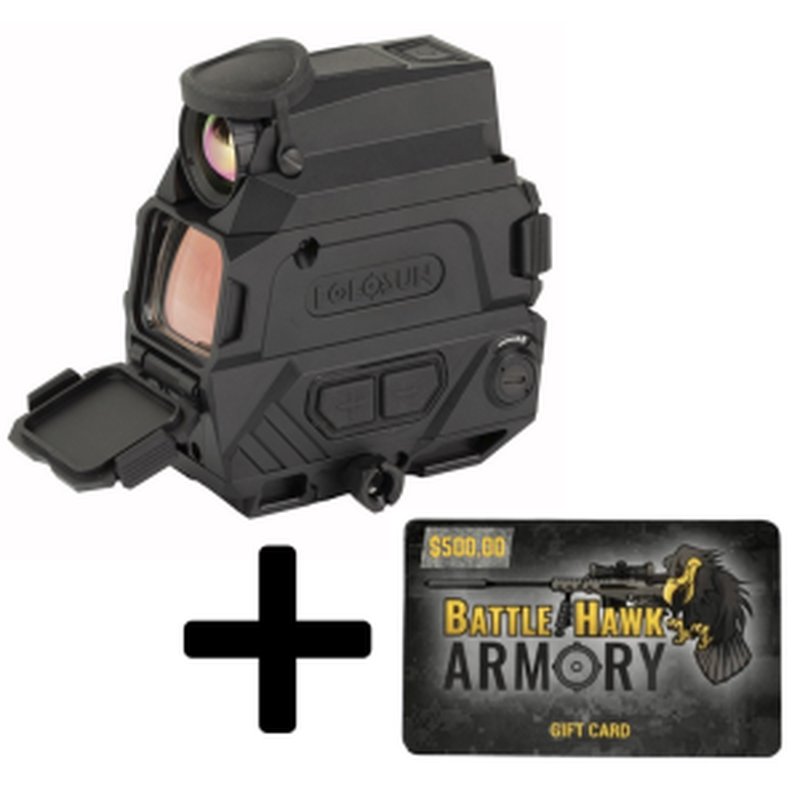

Holosun DRS-TH Thermal/Red Dot Reflex Sight (Thermal Fusion, 2 MOA)

Overview

The Holosun DRS-TH (Digital Reflex Sight - Thermal) combines a red dot with a thermal overlay using a 256x192 thermal sensor.

Reticle / Optical Specs

• Reticle: 2 MOA dot and 65 MOA circle
• Light wavelength: 650 nm
• Reticle color: Red
• Parallax free: Yes
• Unlimited eye relief: Yes
• Magnification: 1x
• Multi-coatings: Yes

Electronic Specs

• Power source: Battery
• Battery type: 18350
• Battery life: 10 hours (thermal sensor)
• Thermal modes: White hot, Black hot, Outline, Highlight
• Digital modes: Thermal fusion
• Video recording: Internal
• Screen refresh rate: 50 fps
• Digital screen: 1024x768 OLED
• Brightness setting: 8 daylight & 4 night vision

Physical / Mechanical / Environmental Specs

• Window size: 1.25 in x 0.98 in
• Dimensions: 3.7 in x 2.2 in x 3.5 in
• Weight: 18.5 oz
• Housing material: 7075 T6 aluminum
• Surface finish: Anodize
• Adjustment per click: 0.5 MOA
• Windage & elevation range: +/- 50 MOA
• Storage temperature: -40°C to 70°C
• Working temperature: -20°C to 51°C
• Submersion rating: IP67
• Vibration rating: 1000G

Magnification

• Digital zoom: 1x, 3x, 5x
• Magnification type: Digital
