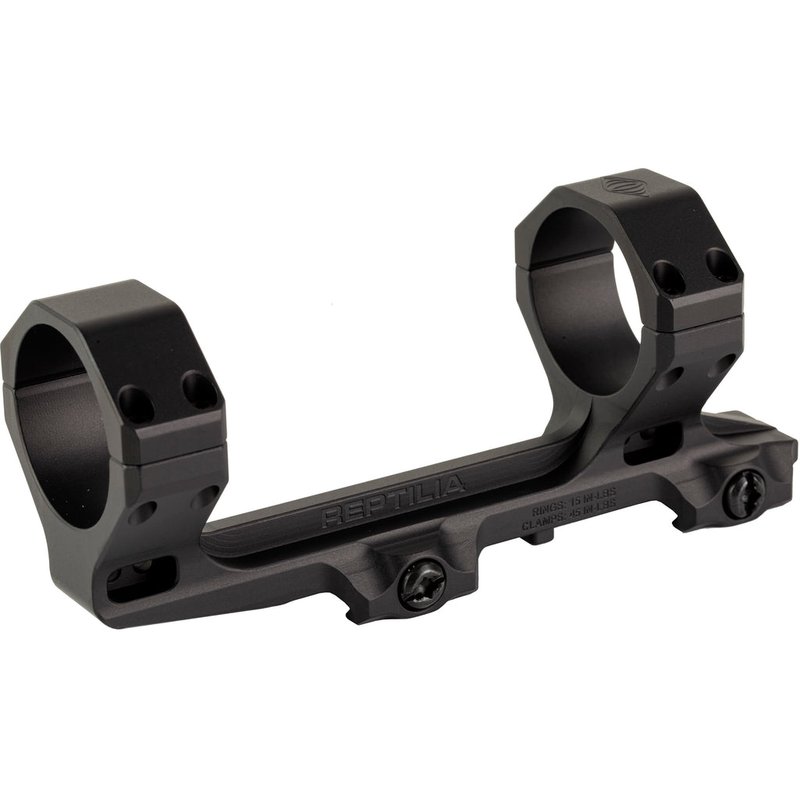

Reptilia AUS 35mm Scope Mount 39mm Centerline Height 7075-T6 Aluminum Black

The Reptilia AUS Mount is purpose-built for 35mm magnified optics, delivering a robust, low-profile interface to any M1913 Picatinny rail. Developed over a two-year program, it uses an anti-snag, spring-loaded nitrided steel clamp with a custom bolt system that tightens flush using either a 5/32 inch hex key or a flat blade screwdriver. Machined from a single piece of billet 7075‑T6 aluminum and finished with a MIL‑STD Type III, Class 2 hard anodize, the AUS Mount offers a streamlined design with 39mm (1.54 inch) centerline height and clearance for objectives up to 77mm on flat-top Picatinny platforms.

Product Highlights

• 35mm bore with 39mm (1.54 inch) centerline height for optimal optic positioning
• One-piece billet 7075‑T6 aluminum construction with MIL‑STD Type III, Class 2 hardcoat anodize
• Anti-snag spring-loaded nitrided steel clamp and custom bolt system; tighten via 5/32 inch hex or flat blade
• Clears up to a 77mm objective on flat-top Picatinny rails for broad optic compatibility
• Streamlined, low-profile mount; compatible with Reptilia’s ROF line

Specs

• Product Type: Scope mount for magnified optics
• Bore Diameter: 35mm
• Centerline Height: 39mm (1.54 inch)
• Rail Interface: M1913 Picatinny
• Clamp: Spring-loaded nitrided steel clamp with custom bolt
• Driver Options: 5/32 inch hex or flat blade screwdriver
• Objective Clearance: Up to 77mm on flat-top Picatinny
• Material: Billet 7075‑T6 aluminum
• Finish: MIL‑STD Type III, Class 2 hard anodize
• Country of Manufacture: USA
• UPC: 850022282218
• Manufacturer Part Number: 100-156
• Brand Name: Reptilia
